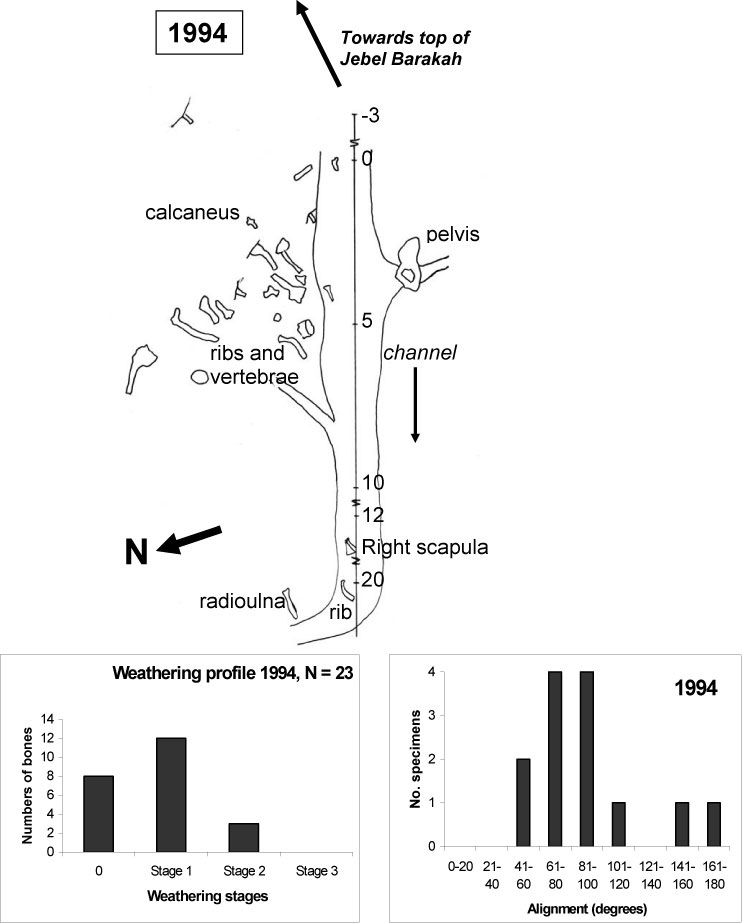

Figure 6. Plan view of the camel skeleton made on April 8, 1994. The main bone cluster was now reduced to 7 m with a rib 2.8 m up the gully from the cluster and several bones from 13 to 24 m downstream. The maxilla measured at 30 m down the gully did not have its position recorded. Nothing was found between 2 and 13 m or between 24 and 30 m, and so the plan has been truncated to cut out these regions, but otherwise the scale and datum line remain the same. Below right is a plot of the alignments of the bones (N = 13), and below right is the weathering profile (Behrensmeyer 1978) of the bones that could be located at this time.
