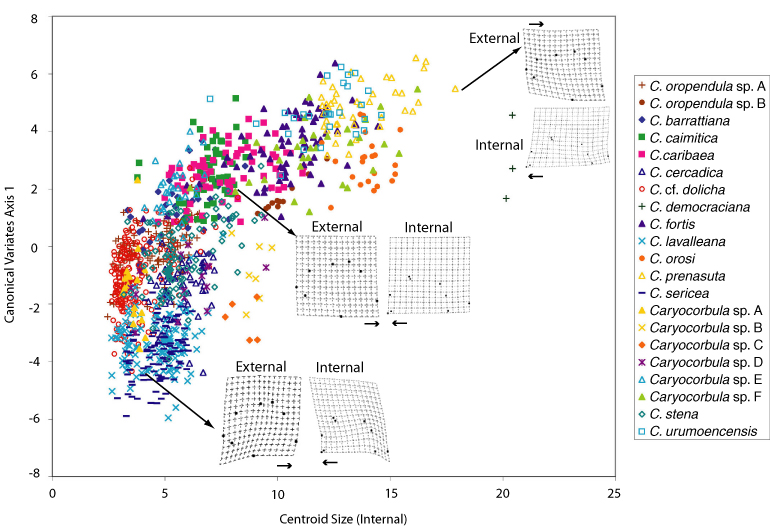

Figure 7. Centroid size based on interior landmarks vs. CV Axis 1 for Caryocorbula (based on uniform and non-uniform shape components derived from both internal and external landmarks for a dataset including only Caryocorbula). Thin plate splines of internal and external landmarks are illustrated for three specimens to show variation in shape deformation along the first relative warp axis (small arrows point toward valve anterior).
